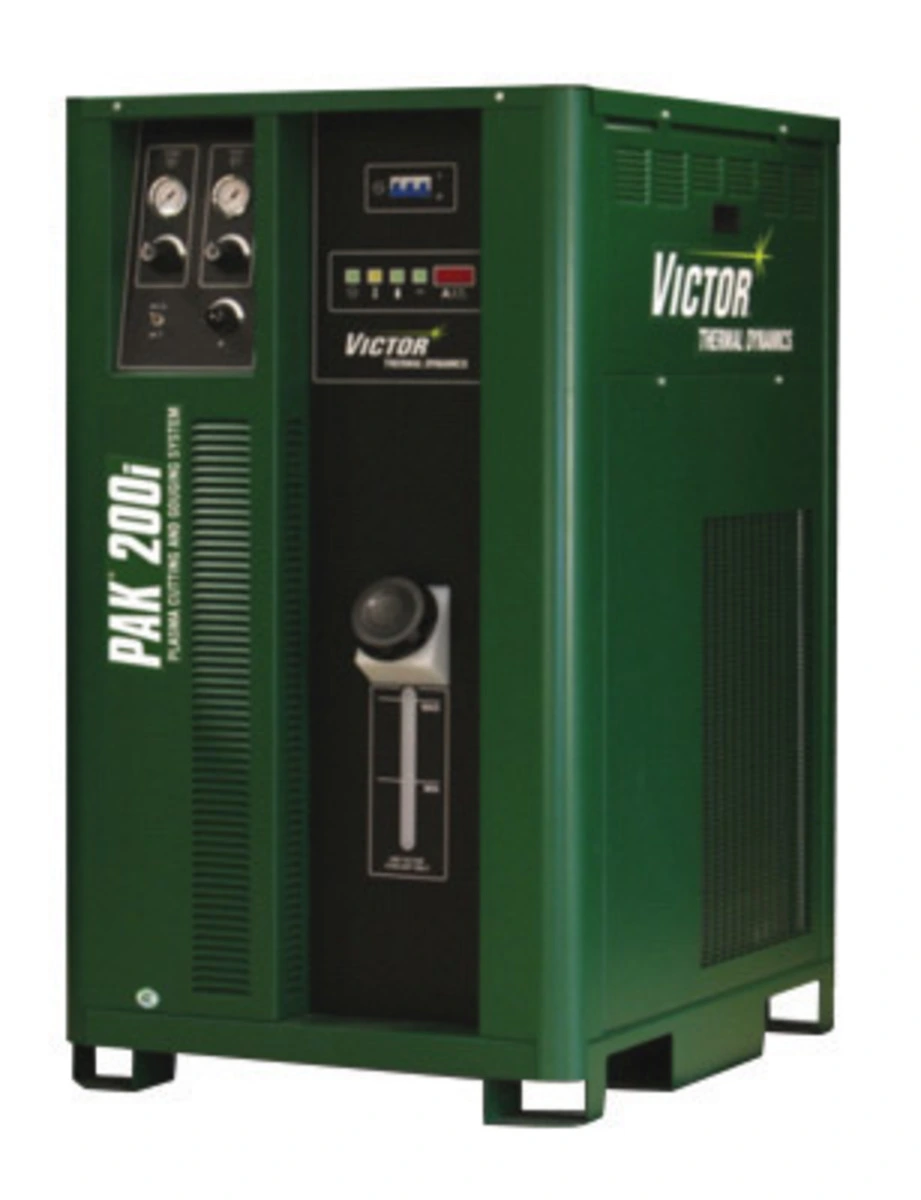

2015 VICTOR THERMAL DYNAMICS PAK 200i
Have one to sell?
$34,592.00 USD
$19,900.00 USD
ConditionUsed
1 available
2015 VICTOR THERMAL DYNAMICS PAK 200i, new condition, never removed from manufacturer's packaging. Output: 35-200 Amps, 40 kW. Max Cut 2-3/4". Includes power supply, 90° PCH200 torch, cables, parts kit, and manual. Includes extra electrodes, shield cups, Thermadyne coolant. Unused, ready for work. Save thousands of dollars on this unused machine.
PERFORMANCE
• Output Current - 35-200 Amps
• Output Power - 40 kW
• Recommended Cut - 1-1/2” (40 mm)
• Max. Cut – 2-3/4” (70 mm)
• Pierce Rating – 1-1/4” (32 mm)
DIMENSIONS: (inch) : 27-5" L-R x 40.6" F-B x 48" H
(metric): 698 L-R x 1091 F-B x 1219 H
WEIGHT: 490 lbs. w/o torch (222 kg)
Fully Assembled Power Supply
INPUT VOLTS
380-415V, 3 ph, 50/60 Hz
400V CE, 3ph, 50/60 Hz
480V, 3 ph
GAS
* Plasma: Air, ArH2 N2
* Secondary: Air, N2
25` lead (including; power supply ; 90 deg. PCH200 torch; 20' work cable w/ground clamp; Input power cable & torch coolant; Spare parts kit and operating manual).
Plus items purchased in addition to standard unit:
* (7) #32-1310 plasma cutter electrodes
* (5) #32-1325 plasma cutter shield cups
* (1) #7-3580 6-gallons of Thermadyne "extra cool" coolant (note:
specially formulated for use in plasma cutting & welding torches, MIG &
TIG torches and coolant re-circulators.
