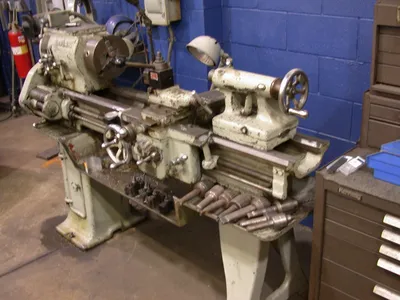

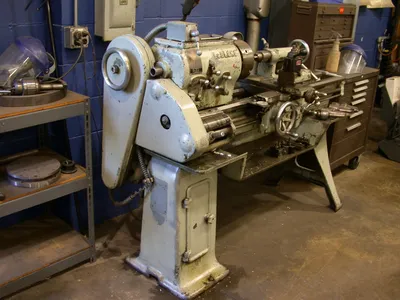

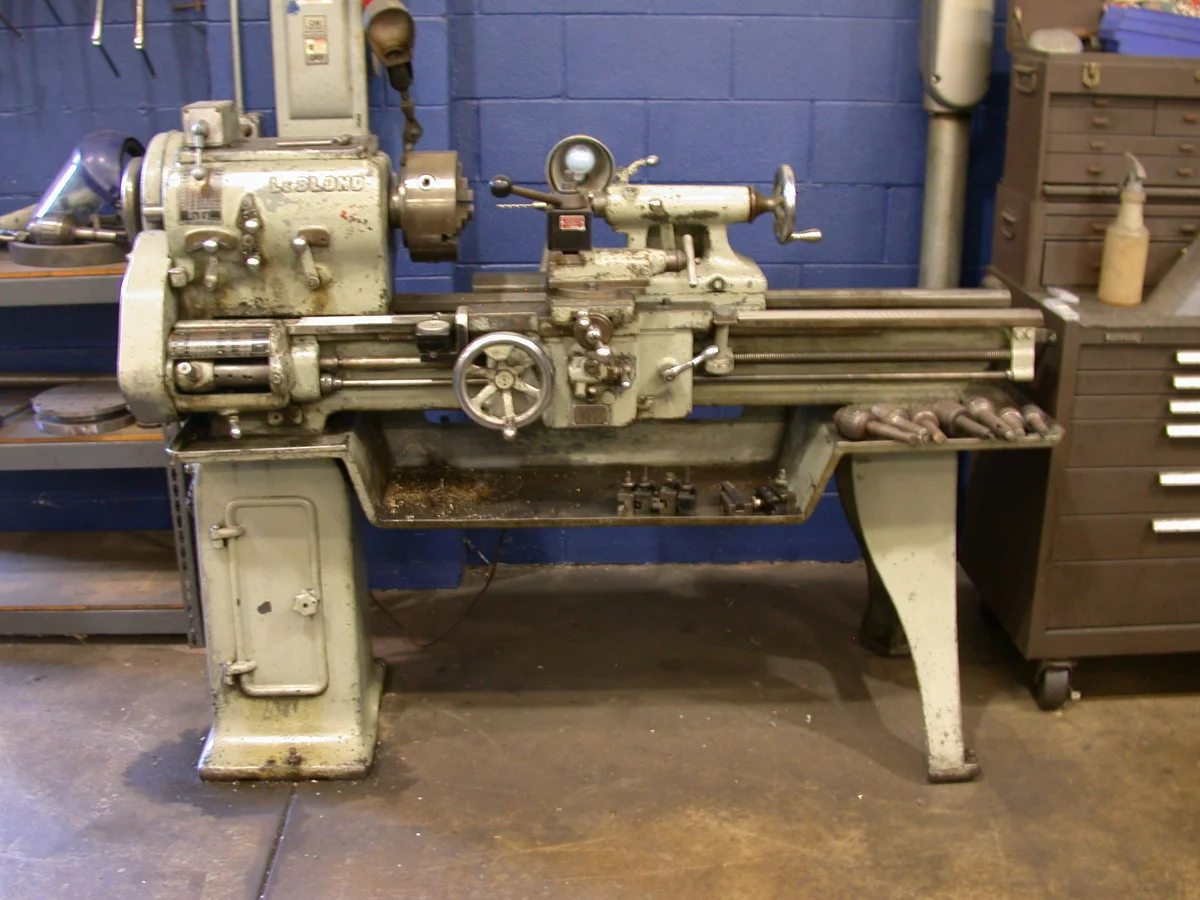

15" x 30" Leblond Geared Head Lathe
Have one to sell?
ConditionUsed
1 available
This is a no-frills reliable machine for which many parts are still available from LeBlond.
The Trav-A-Dial attachment on the carriage is a real "plus", often referred to as a "poor man's digital readout". It provides a simple, yet effective, method of keeping track of the carriage's position along the longitudinal axis.

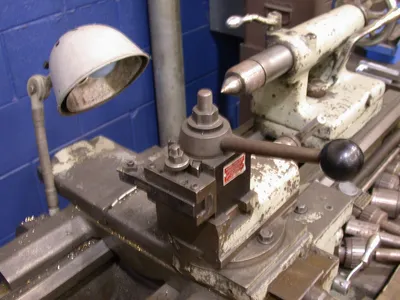

The Aloris quick-change tool post is not to be underestimated. It comes with 6 holders, and more styles are available from the manufacturer. Today's replacement cost will give you "sticker shock". Check out the numerous other accessories.
Not being represented as a toolroom machine, it's plenty accurate for most maintenance work and priced realistically. Would also work well in a welding shop.
GENERAL SPECIFICATIONS:
Swing over ways 15-1/4”
Swing over compound 10”
Distance between centers 30”
Spindle speeds (8) 37 – 750 RPM
Spindle nose Taper key, LOO, 2-3/4”
Spindle bore 1-3/32”
Spindle taper No. 3 Morse
Cross slide travel 8-1/2”
Compound rest travel 3-3/8”

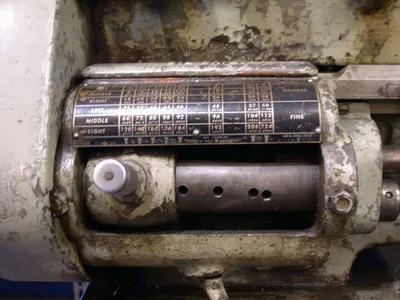

Threads – number & range (48) 4 to 224 TPI
Feeds – number & range (48) 0025 to .143 IPR
Leadscrew dia.& TPI 1” – 6
Tailstock
- Spindle dia. 1-15/16”
- Taper No. 3 Morse
- Spindle travel 4”
Motor 1 hp, 220V/3/60 – 1,800 RPM
Net weight 3,000 lbs. (approx.)
Overall dimensions 6’ L-R x 32” F-B x 51” H
NOTES:
.F.O.B. Open Truck or Open Trailer from owner’s Lake Villa (Northern Illinois) facility.
.Inspection under power can be pre-arranged.

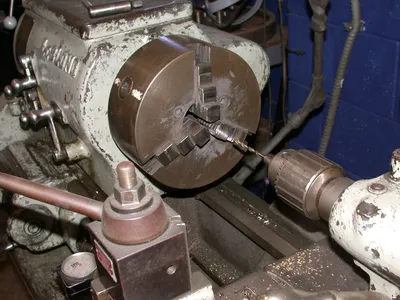

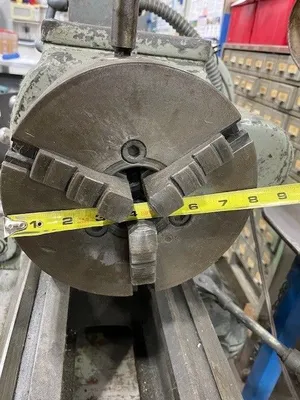

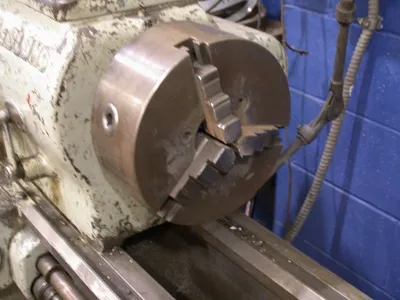

* 8" 3-jaw Universal Chuck
* Trav-A-Dial (displays carriage traverse left-to-right)

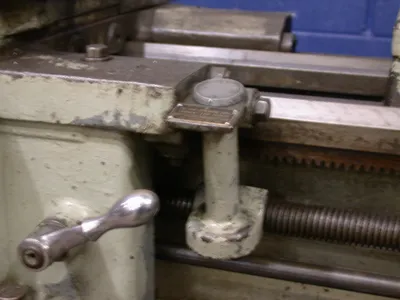

* Micrometer Carriage Stop

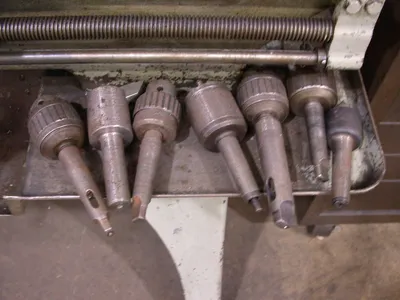

* Tailstock Tooling – list

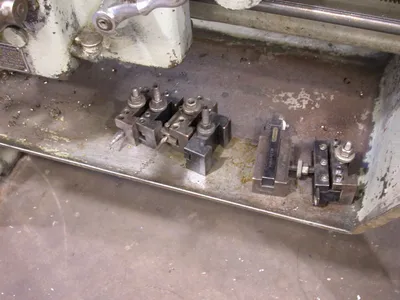

* 4-Way Aloris BXA Quick-Change Tool Post (U.S. made) w/(6) Toolholders

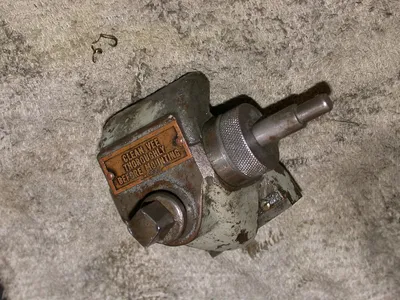

* Thread Chasing Dial Indicator
* Work lamp
* Chip Pan
* Tailstock tooling
